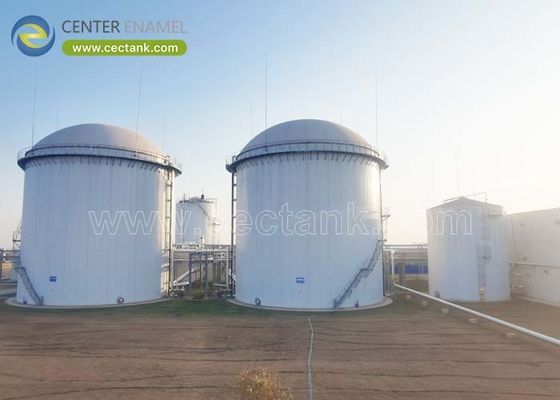

GFS Organic Biodigesters: Advanced, Sustainable Solutions for Waste-to-Energy by Center Enamel

GFS Organic Biodigesters: Advanced, Sustainable Solutions for Waste-to-Energy by Center Enamel

Faced with mounting pressures to reduce organic waste, cut greenhouse emissions, and create renewable energy, industries and municipalities worldwide are turning to anaerobic digestion—biodigestion—as a core strategy. At the heart of these circular economy systems stands the organic biodigester tank. Shijiazhuang Zhengzhong Technology Co.,Ltd (Center Enamel) is a global leader in the manufacture and engineering of Glass-Fused-to-Steel (GFS) organic biodigesters, combining structural strength, chemical resilience, and operational efficiency for biogas and waste treatment projects.

As a leading storage tank manufacturer worldwide. Center Enamel can provide Glass Lined Steel(GLS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs, Wastewater and Biogas Project Equipments for global customers.

WasteWater Treatment Project Equipment Supply

1. The Principle and Power of Organic Biodigestion

Anaerobic digestion transforms organic residues—agricultural waste, food scraps, industrial byproducts, sewage sludge—into a biogas rich in methane and a nutrient-dense digestate. It dramatically reduces organic pollution, recycles nutrients, and delivers a constant stream of renewable energy in the form of biogas.

Modern biodigester tanks must:

• Provide a gas- and liquid-tight, corrosion-resistant, and robust containment environment for anaerobic microbes to flourish.
• Withstand hostile process conditions: acids, sulfides, ammonia, and mixing forces.
• Serve for decades with minimal downtime or risk of environmental breach.
• Enable easy expansion, cleaning, and integration with gas collection, heating, and feeding systems.

2. Why Glass-Fused-to-Steel (GFS) Biodigesters Excel

GFS tanks result from the fusion of industrial glass to steel at 820–930°C, yielding a composite material that merges steel’s mechanical strength with an impermeable, chemical-resistant glass lining on both sides of each panel.

Core Benefits

a. Superior Corrosion Resistance

• The glass lining resists organic acids, sulfides, and ammonia commonly released during anaerobic fermentation, far outclassing simple painted or epoxy-coated steel tanks. This minimizes corrosion and wear, maximizing service life and biogas system safety.

b. Long Lifecycle and Ruggedness

• With a service life of over 30 years, GFS biodigesters withstand internal gas pressures, external climate extremes, and ongoing agitation/mixing, with less risk of leaks or catastrophic failure than concrete or plastic alternatives.

c. Precise Modularity and Engineering

• Bolted panel design allows for quick installation and tailored scaling—from sub-100 m³ village digesters to 30,000 m³+ utility-scale units. Tanks can be expanded, relocated, or repaired with minimal downtime.

d. Hygiene and Cleanability

• The smooth, non-porous glass surface inhibits biofilm accumulation and scaling, is easy to clean, and simplifies maintenance scheduling. This supports higher methane yields and better plant hygiene.

e. Gas/Liquid Tightness and Environmental Security

• GFS panels, self-locking bolts, and custom gaskets create a perfectly sealed anaerobic environment, ensuring methane containment, process reliability, and environmental compliance.

f. Chemical and Mechanical Versatility

• GFS tanks work across a wide pH range (1–14), tolerate aggressive cleaning regimens, and are resistant to shock—ideal for harsh waste streams and flexible for future process upgrades or retrofits.

3. Center Enamel GFS Biodigester Specifications

• Steel Panel Thickness: 3–12 mm, according to tank volume and project load.
• Glass Layer Thickness: 0.25–0.45 mm (each side), fired for robust bonding.
• Panel Colors: Black blue, grey olive, forest green, cobalt blue, tan, or custom.
• Surface Hardness: Mohs 6.0—superior abrasion and impact resistance.
• Adhesion Strength: ≥3450 N/cm².
• Gas/Water Impermeability: Holiday tested to >1500V.
• pH Resistance Range: Standard 3–11, special 1–14.
• Design Standards: ISO9001, ANSI/AWWA D103, EN1090, NSF/ANSI 61, CE, WRAS.
• Service Life: 30+ years.

4. Advanced Manufacturing Process

a. Precision Fabrication

• Automated CNC cutting/drilling ensures perfect fits for bolts, manways, and connections.
• Shot-blasted steel is acid-cleaned for maximum glass adhesion prior to kiln firing.

b. Quality Assurance

• Every single panel is spark-tested and measured for enamel thickness, adhesion, and chemical resistance before shipment.
• Installation follows strict sealing and bolting protocols for watertightness and durability.

c. Fast, Efficient Site Construction

• Modular panels are shipped worldwide, even to remote locations, for rapid erection and commissioning with little site preparation.

5. Accessories and Custom Options

• Roof Types: Fixed, geodesic domes, double membrane for gas storage, or open-top for specific process designs.
• Process Integration: Heating coils, feed/recirculation pipes, sampling ports, inspection hatches, digester gas domes, anti-corrosion liners for harsh feedstocks.
• Safety Features: Antiskid ladders, platforms, safety rails, remote monitoring (SCADA), and lightning protection.
• Insulation & Thermal Management: Comprehensive insulation systems for energy savings and optimal microbial activity in all climates.
• Mixing Systems: Side- or top-mounted mixers for enhanced substrate contact and methane production.

6. Real-World Applications and Case Studies

Center Enamel’s GFS biodigesters are trusted in:

• Municipal Utilities: Digesters treating city sewage sludges and organic wastes.
• Farm/Agriculture: Manure, silage, and crop waste converted to renewable energy, fertilizer, and pathogen-free solids.
• Food/Beverage Industry: Organic-rich wastewater from breweries, dairies, wineries, and bakeries, turning waste to value.
• Biogas Plants: Utility-scale renewable methane for pipeline or CHP, grid integration, or vehicle fuel.
• Industrial Waste Management: High-strength organic effluents, fats/oils/greases, leachate, or food processor byproducts.

Each Center Enamel tank is tailored to meet local regulations, process demands, and integration needs, with hundreds of successful installations in Asia, Europe, Africa, and the Americas.

7. Environmental and Economic Impact

• Methane Emissions Reduction: Anaerobic digestion prevents uncontrolled methane release and maximizes renewable energy recovery.
• Circular Economy: Produces valuable digestate for soil improvement, closing the nutrient loop.
• Low Life-Cycle Cost: GFS durability, fast build, and low maintenance deliver industry-leading ROI.
• Water Quality Compliance: Keeps organic pollution, pathogens, and nutrients out of water bodies.
• Carbon Footprint: Replaces fossil fuel energy, reduces fertilizer use, minimizes landfill.

8. Why Choose Center Enamel?

• Pioneering Technology: One of the world’s first double-sided GFS manufacturers, with over 200 engineering patents.
• Global Reach: 30,000+ tanks in 100+ countries; local support and worldwide references.
• Integrated Service: One-stop engineering, manufacturing, logistics, installation, and after-sales support.
• Standards Compliance: AWWA, ISO, NSF, CE, EN certified for the world’s strictest markets.
• Customization: Tanks, domes, systems, and accessories tailored to individual project and biogas targets.

GFS organic biodigesters from Center Enamel set the global benchmark for safe, efficient, and sustainable biogas production, waste management, and resource recovery. Combining unmatched corrosion resistance, rapid scalability, ease of maintenance, and versatile integration, they unlock the true potential of anaerobic digestion for today’s circular economy.

Whether for a municipal biogas plant, agricultural project, or industrial waste reclamation facility, Center Enamel’s GFS biodigester tanks are the reliable, future-proof solution. Connect with our team for customized designs, technical consultation, or turnkey project support—start maximizing the value of your organic feedstocks today.
