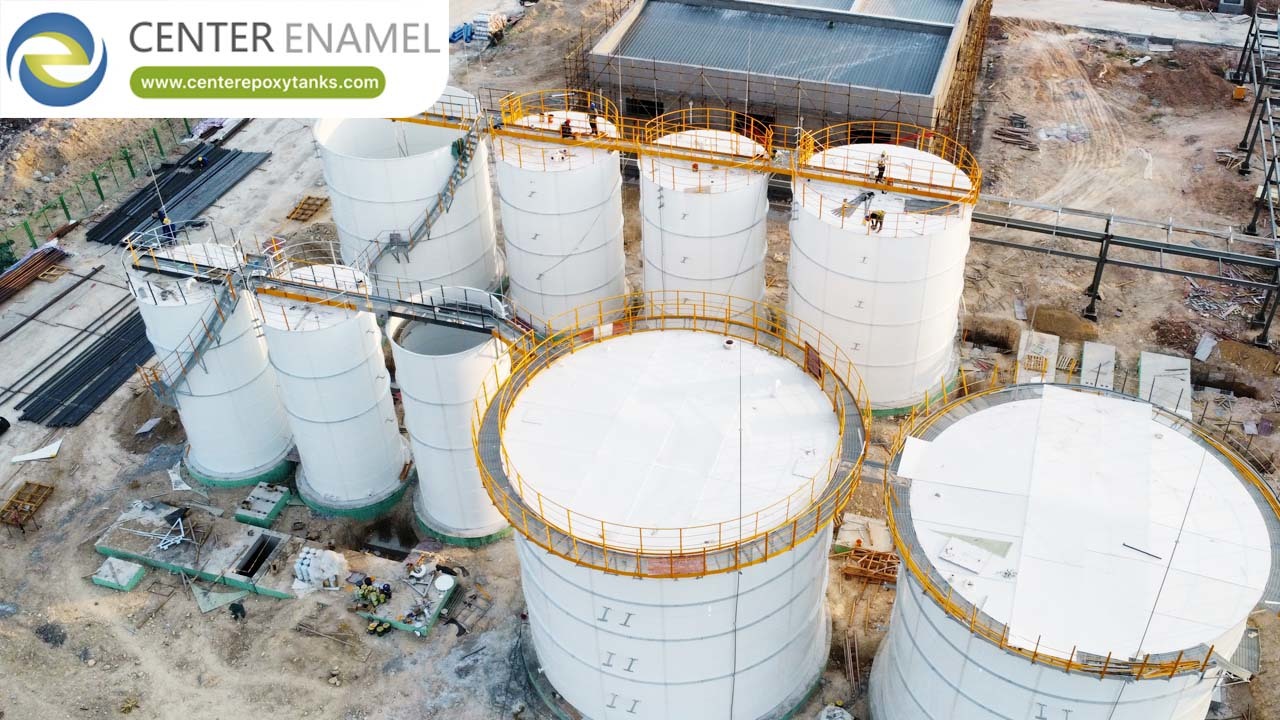

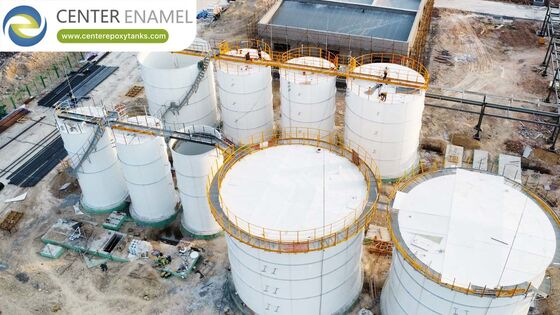

Reliable Pre-Treatment Storage: The Engineering Guide to FBE Raw Water Tanks

In any water treatment or industrial process, the Raw Water Tank serves as the vital buffer between the source (river, lake, or borehole) and the treatment plant. Raw water is often unpredictable, containing suspended solids, varying mineral content, and organic matter that can be abrasive or mildly corrosive. Fusion Bonded Epoxy (FBE) tanks, also known as epoxy-coated bolted steel tanks, provide the ideal balance of high-tier protection and rapid deployment for these essential utility assets.

1. What is Fusion Bonded Epoxy (FBE) Technology?

Fusion Bonded Epoxy is an advanced coating process where a high-performance epoxy powder is electrostatically applied to a steel substrate. Unlike traditional liquid paints that are field-applied, FBE is a "factory-controlled" process involving thermal curing to create a high-molecular-weight polymer bond.

The Center Enamel Manufacturing Excellence

• Surface Preparation: Steel plates are grit-blasted to SA 2.5 (Near-White Metal) standards, creating a precise anchor profile for maximum coating adhesion.
• Electrostatic Thermal Spraying: The epoxy powder is charged and sprayed in a climate-controlled facility, ensuring 100% coverage, including edges and bolt holes.
• Covalent Bonding: The plates are baked at high temperatures, causing the powder to melt and chemically cross-link with the steel surface, forming a hard, continuous barrier.

3. Strategic Advantages for Utility Managers

Impact and Abrasion Resistance

Raw water often carries silt, sand, and debris. The fusion-bonded coating is highly ductile and impact-resistant, ensuring that the internal lining does not crack or chip when faced with the mechanical stress of turbulent inflow or abrasive solids.

Modular Efficiency & Zero "Hot Work"

In remote areas or active industrial sites, minimizing on-site risk is a priority.

• No On-Site Welding: As a bolted tank solution, FBE tanks eliminate "hot work" permits and fire hazards during construction.
• Rapid Installation: Modular components can be assembled in a fraction of the time required for concrete or welded tanks.
• Logistical Edge: Our "tank-in-a-box" shipping model allows for easy transport to remote borehole sites or mountainous terrain in standard containers.

Low Maintenance & Scaling Resistance

The smooth, non-porous finish of the epoxy coating resists mineral scaling and biological film adhesion. This makes periodic tank clean-outs faster and more efficient, reducing the operational downtime of the entire water treatment train.

4. Applications of FBE Tanks in the Water Cycle

• Borehole Water Storage: Buffer tanks for groundwater extraction.
• River/Surface Water Intake: Settlement and storage prior to coagulation/flocculation.
• Industrial Utility Water: Raw water supply for cooling towers and process lines.
• Irrigation Reservoirs: Large-scale storage for agricultural water management.

5. FAQ: FBE vs. GFS for Raw Water

When should I choose FBE instead of Glass-Fused-to-Steel (GFS)?

For standard raw water (pH 3–11) with low-to-moderate salinity, FBE is the most cost-effective solution. However, if the raw water is highly acidic, alkaline, or extremely abrasive (such as mining slurry), our Glass-Fused-to-Steel (GFS) tanks offer superior 6.0 Mohs hardness and pH 1–14 resistance.

Are these tanks suitable for cold climates?

Yes. The FBE coating is engineered to handle thermal expansion and contraction cycles without delaminating, and the tanks can be easily integrated with external insulation jackets for freeze protection.

Can the capacity be increased later?

One of the primary benefits of the bolted design is scalability. If your water demand grows, additional rings can often be added to the tank to increase storage volume with minimal structural modification.

About Shijiazhuang Zhengzhong Technology (Center Enamel)

With over 30 years of industry experience and nearly 200 patents, Center Enamel is Asia's leader in bolted tank technology. Our Fusion Bonded Epoxy tanks are operational in over 100 countries, helping municipalities and industries worldwide secure their raw water supplies with durable, sustainable infrastructure.

Build your water infrastructure on a foundation of reliability.
